Smart Sorting Solutions

Integrated with software, the smart sorting system can solve the classification and conveying problem. It is suitable for the sorting of cartons, boxes and items with a flat bottom surface. It can greatly improve the efficiency and benefit of the enterprise, and save the production and management cost.

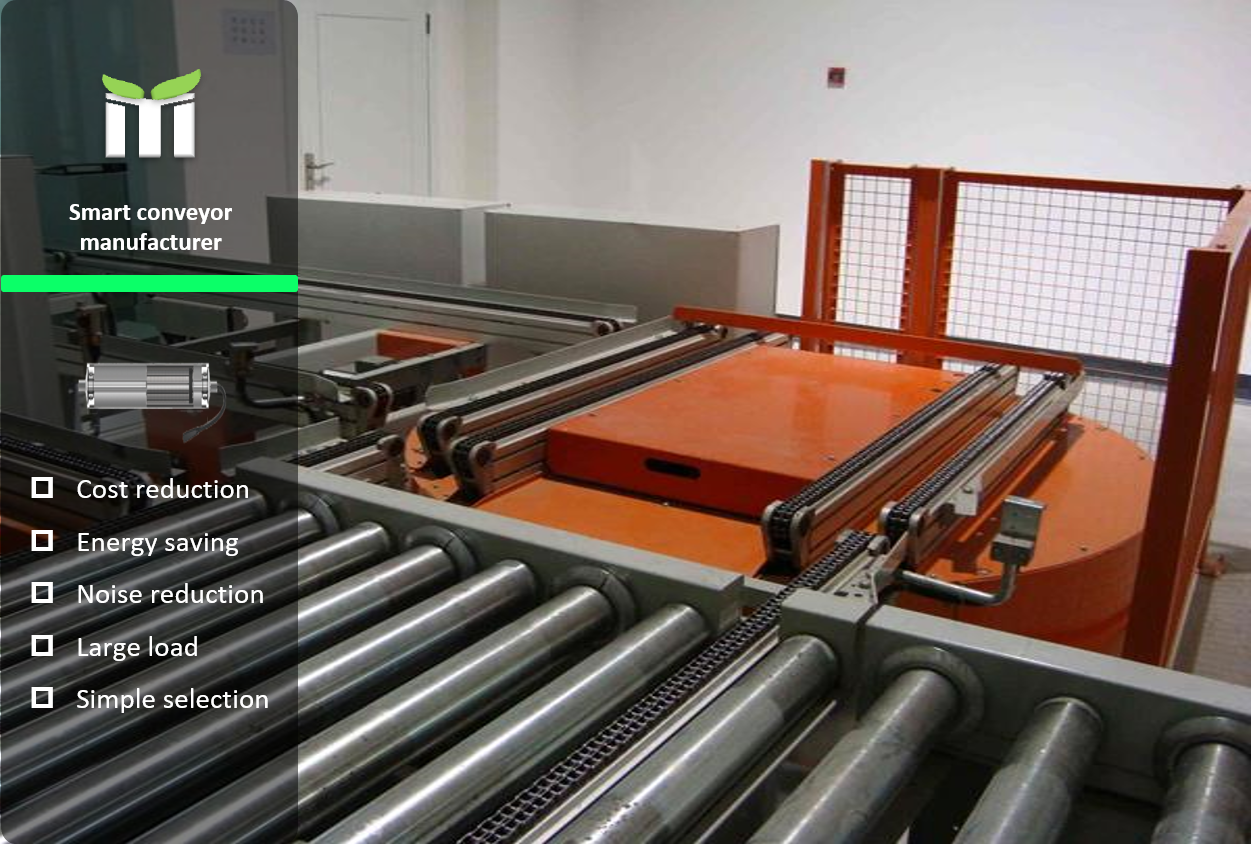

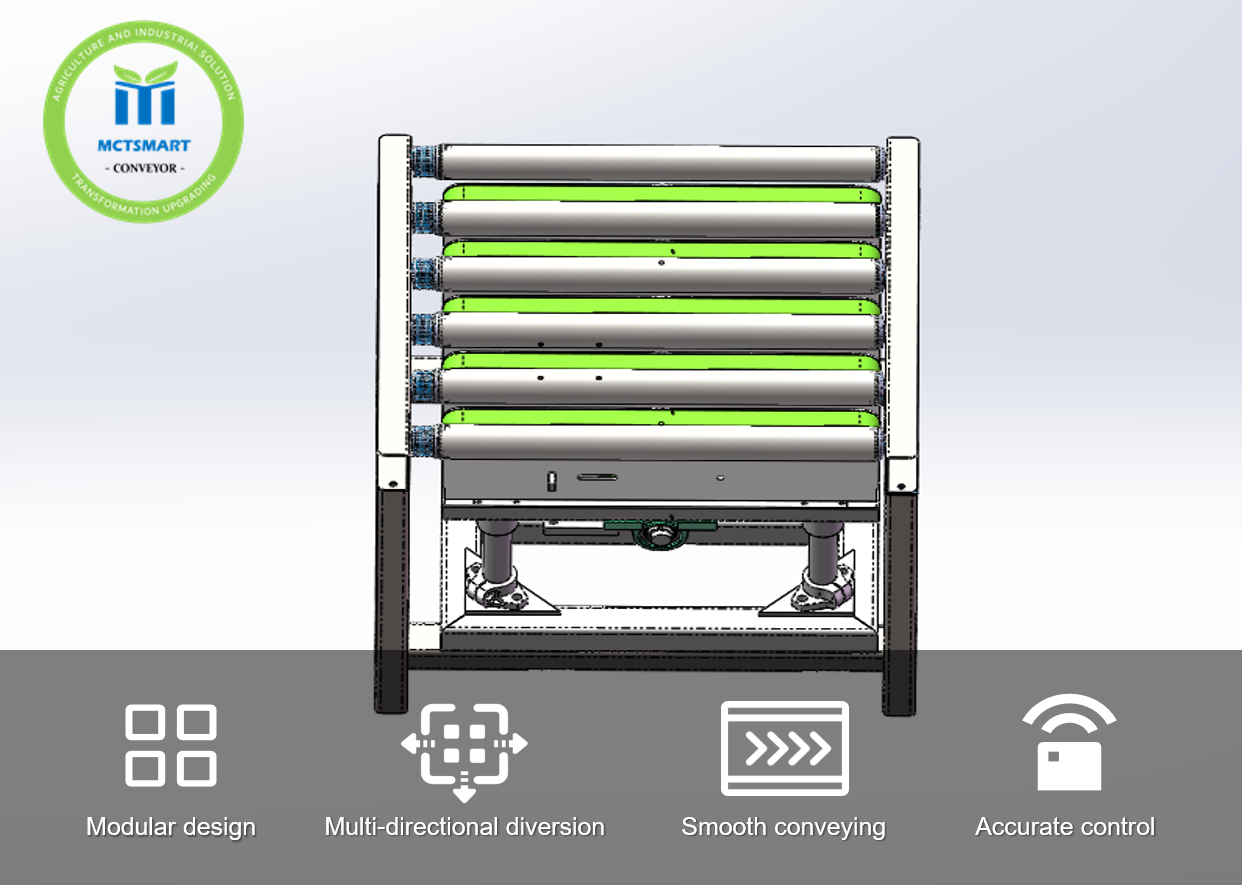

Transfer sorting

Application: heavy-duty goods

▣ Lifting and transferring: There are 3 different kinds of motors/electric rollers to lift, transfer and convey.

▣ Rotating table: Equipped with high-quality gear motor, the configuration of position, output speed and power are determined by the requirements.

★ Suitable for rail-changing and rail-conveying of all cartons, boxes and items with flat bottoms.

☢ Weight: Max.3000kg

☢ Rotating speed: 0.2~0.3m/s

☢ Rotating angle: 90°

☢ Drive-way: motor/electric roller

☢ Goods size: Max.L2500xW1400mm,Min.L250xW250mm

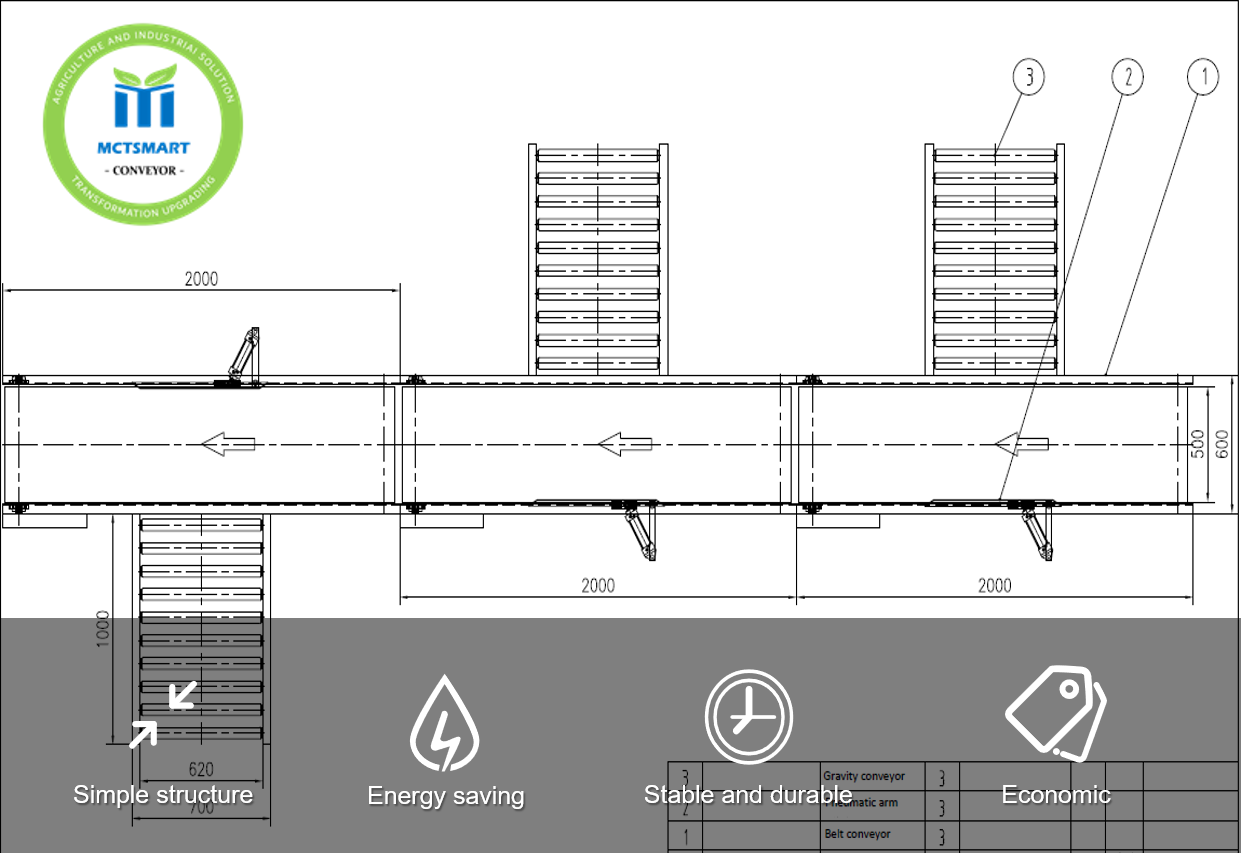

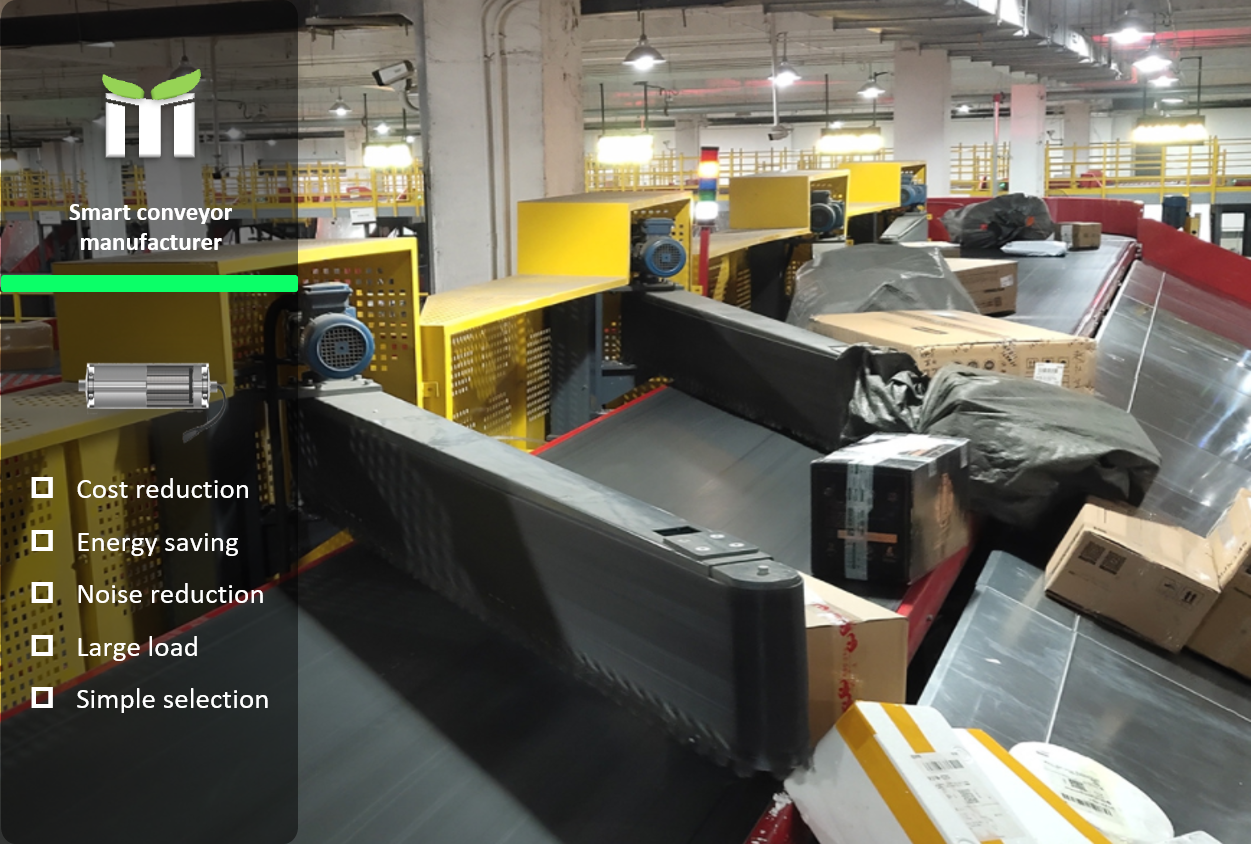

Swing-arm sorting

Application: light goods

▣ The swing-arm sorter is one kind of sorting solutions with simple, stable, reliable and accurate features. Swing arms push goods to the corresponding position according to the goods properties.

★ Suitable to convey all cartons, boxes and items with flat bottoms.

☢ Weight: Max.30kg

☢ Efficiency: 3000pcs/h(single arm)

☢ Swing: ≤1s

☢ On/off: ≤0.2s/time

☢ Goods size: Max.L1500xW800mm,Min.L150xW150mm

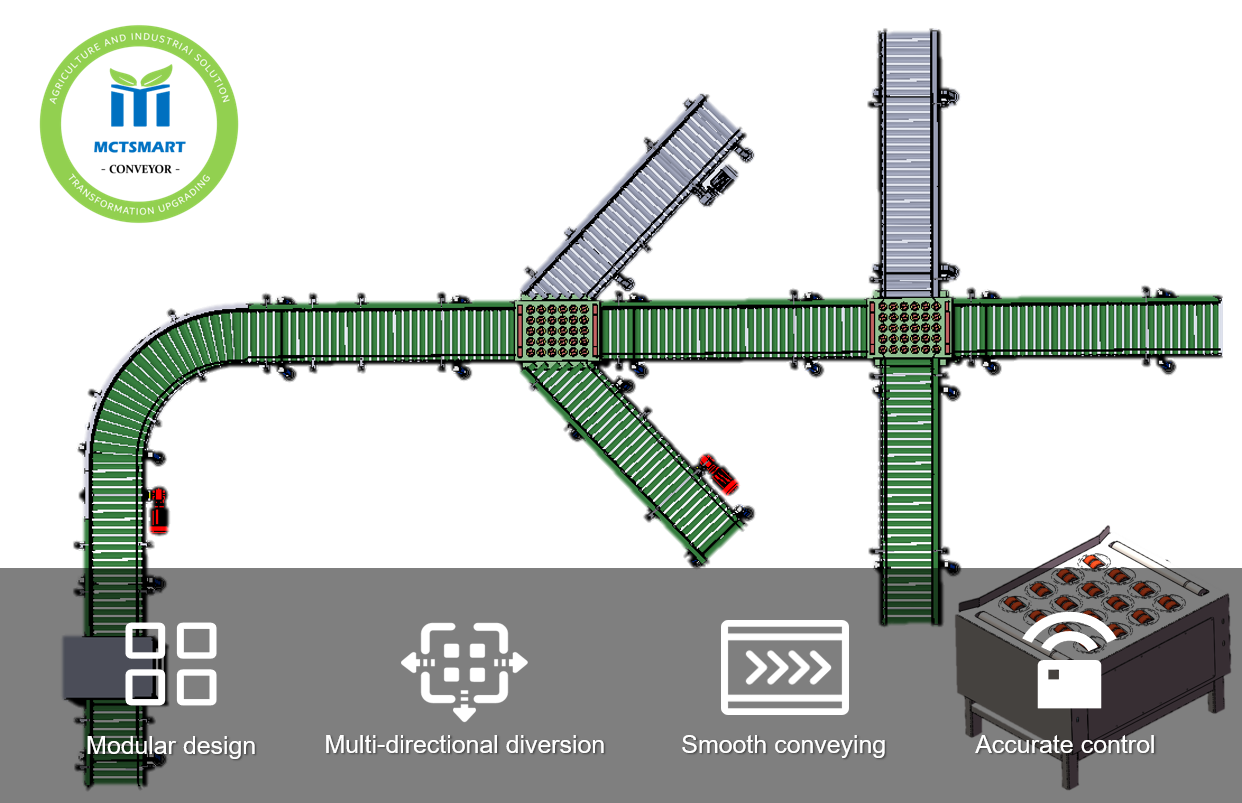

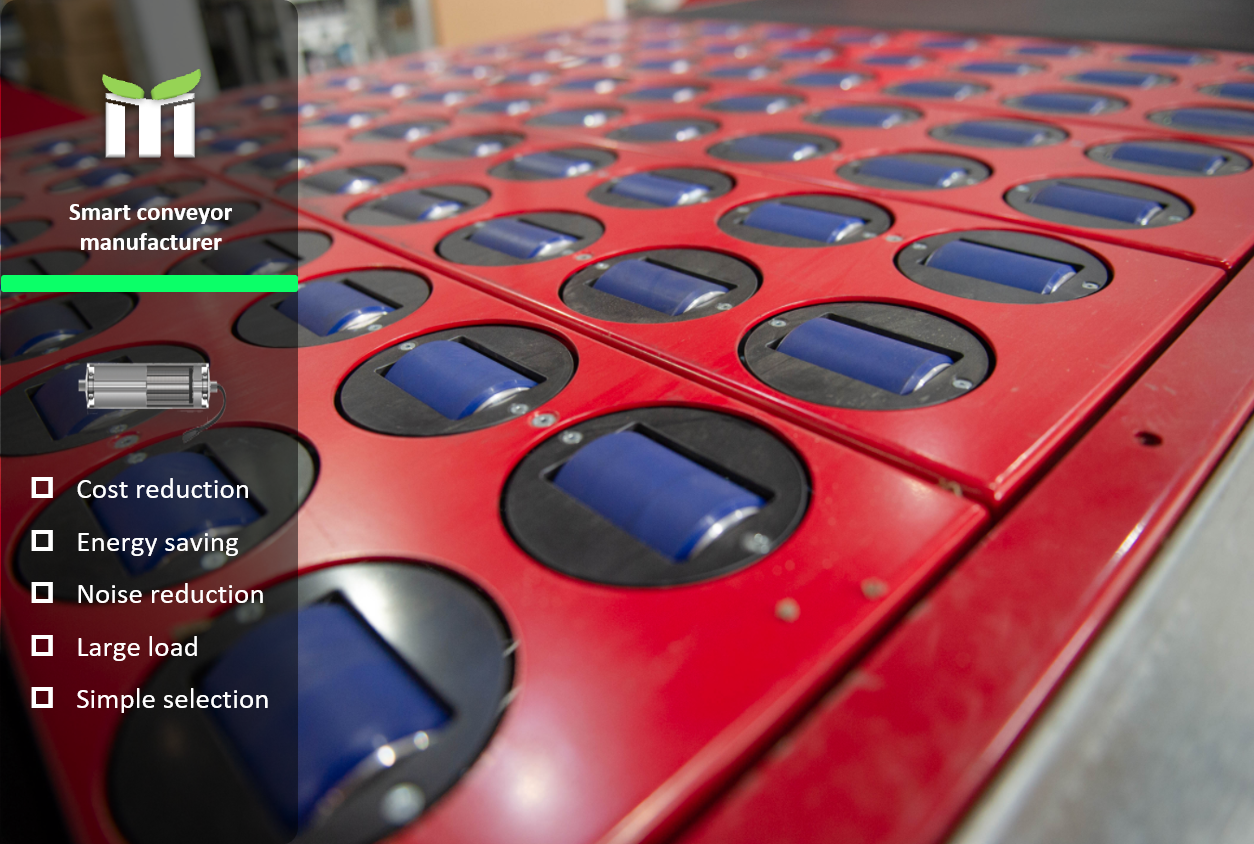

Guide-wheel sorting

Application: light goods

▣ Combined with belt/roller conveyors, the guide-wheel sorter can multi-directionally divert the goods. Because the surface of goods is "relatively flat", it will be more stable and efficient for conveying and sorting.

▣ Integrated with software, the system will support for various intelligent services such as machine status, maintenance strategies and life-time management.

★ Suitable to convey all kinds of packages, clothes, books, cartons, boxes, soft bags, small items and etc..
